Product Model:SY3000
Protection level: IP20
Input Voltage(1): 3PH 400V
Output Voltage(1): 3PH 400V
Storage environment temperature ranges from -20 ℃ to +65 ℃
Communication Interface: Standard RS485 communication interface

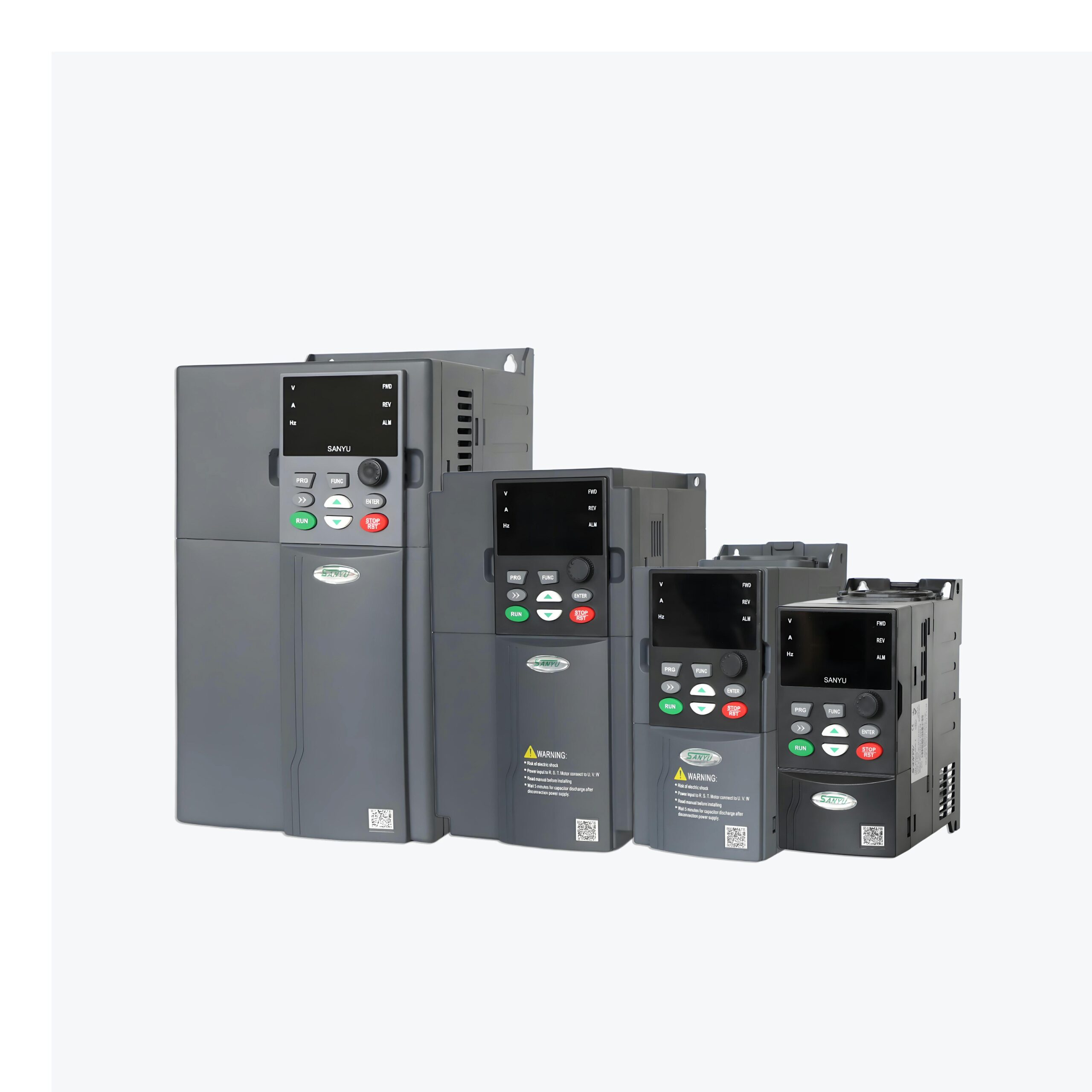

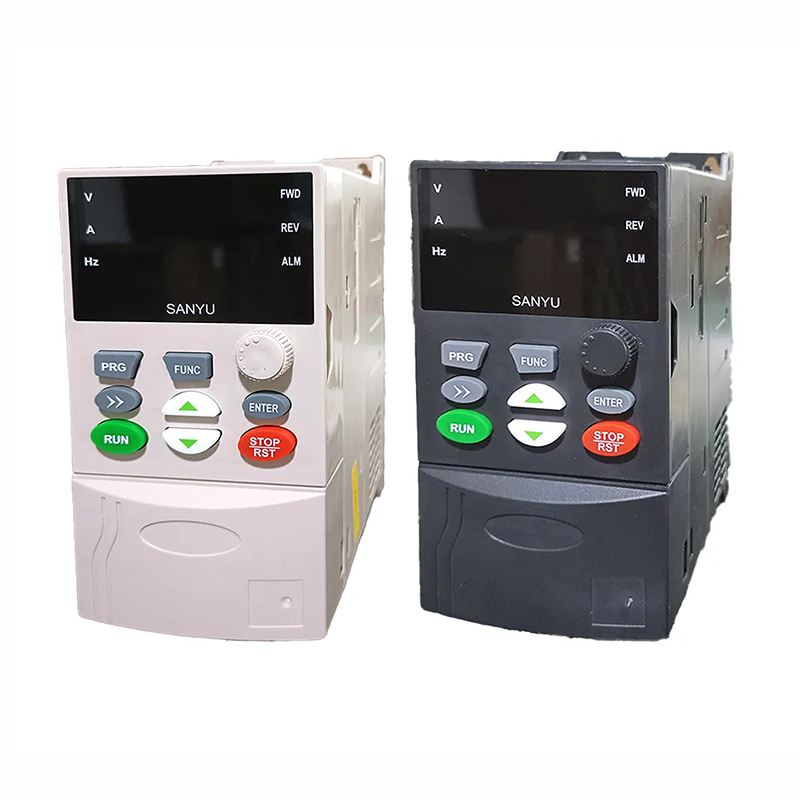

SANYU SY3000 3PH 380V 1PH 220V Variable Frequency Drive 0.4-90KW Frequency Inverter AC Drive VFD VSD for Fan Pump
| Voltage Level | Model | Rated Capacity (KVA) | Rated Output Current (A) | Adapter Motor (KW) |
| 1Phase 220V | SY3000-0R4G-S2 | 1 | 2.5 | 0.4 |
| SY3000-0R7G-S2 | 1.4 | 4 | 0.75 | |
| SY3000-1R5G-S2 | 2.6 | 7 | 1.5 | |
| SY3000-2R2G-S2 | 3.8 | 10 | 2.2 | |
| SY3000-004G-S2 | 14 | 16 | 4 | |
| SY3000-5R5G-S2 | 20 | 20 | 5.5 | |
| SY3000-7R5G-S2 | 24 | 30 | 7.5 | |
| 3Phase 380V | SY3000-0R4G-4 | 1.2 | 1.6 | 0.4 |
| SY3000-0R7G-4 | 1.5 | 2.3 | 0.75 | |
| SY3000-1R5G-4 | 3.7 | 3.7 | 1.5 | |
| SY3000-2R2G-4 | 4.7 | 5 | 2.2 | |
| SY3000-004G-4 | 6.1 | 8.5 | 4 | |
| SY3000-5R5G-4 | 11 | 13 | 5.5 | |
| SY3000-7R5G-4 | 14 | 17 | 7.5 | |
| SY3000-011G-4 | 20 | 25 | 11 | |
| SY3000-015G-4 | 24 | 32 | 15 | |
| SY3000-018G-4 | 26 | 37 | 18.5 |
SY3000 series ac drive is a kind of multi-functional and wide application frequency inverter for small power machines market. It can be widely used in various kinds of processing machinery, water pumps, conveyors and fans. It has complete functions, including MODBUS communications, 16 section speed, speed tracking, built-in PID, integrated brake unit,high frequency output and other common functions and characteristics. This series uses the V/F control technology to optimize the performance of motor control. Compact structure design for the user to save more installation space. Products adopts the PIM module (the United States IR chip, low loss IGBT module), providing 150% of the rated current overload capacity of 60S.

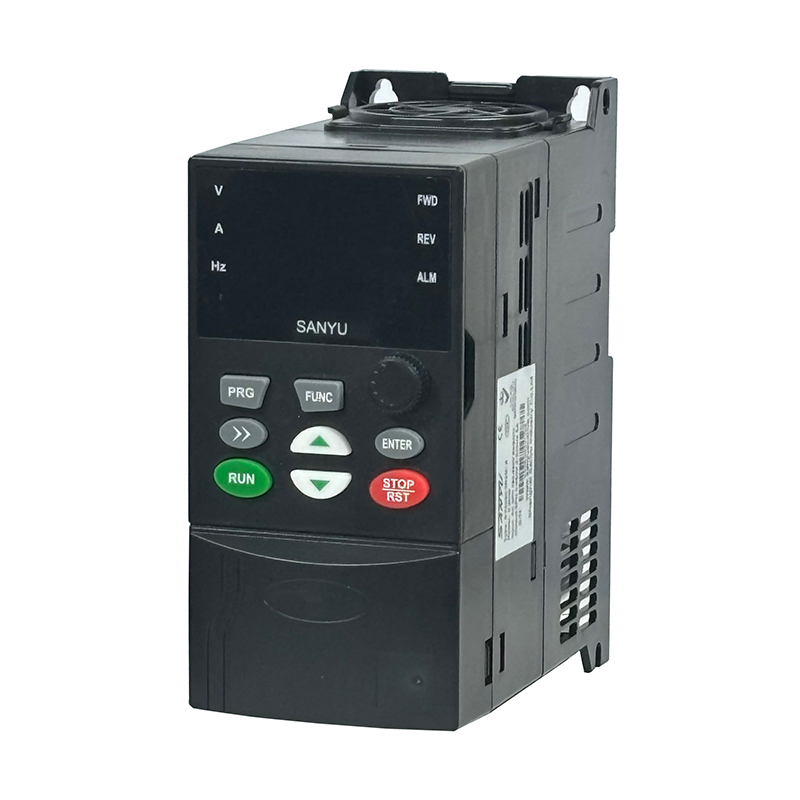

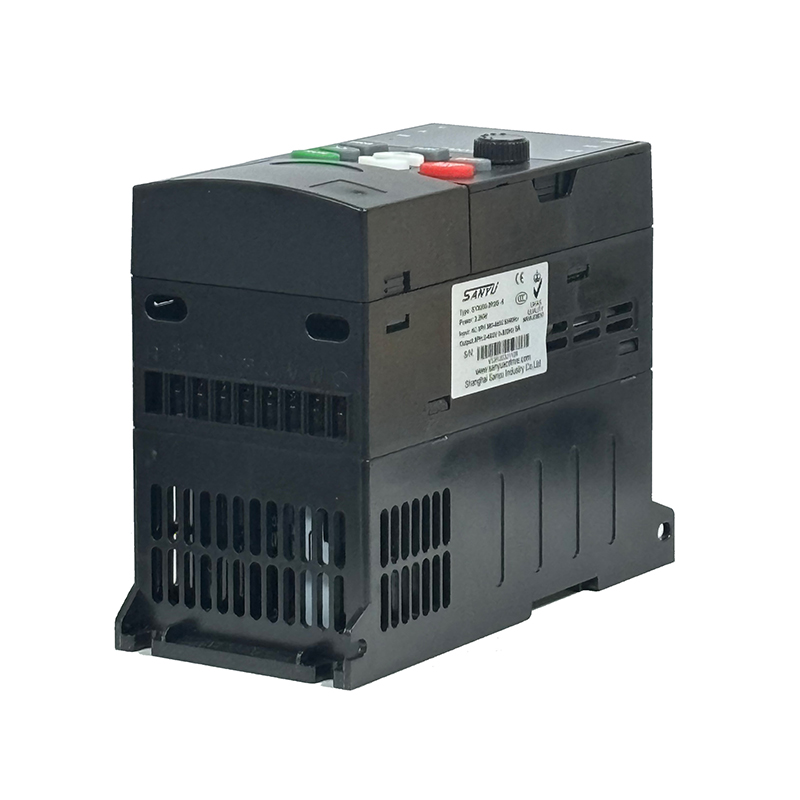

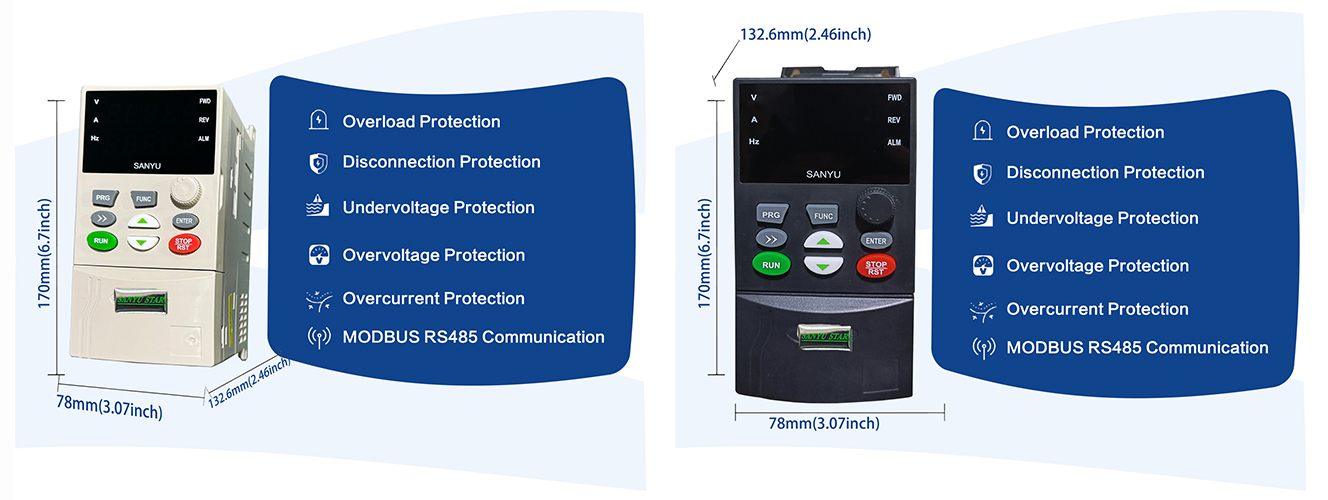

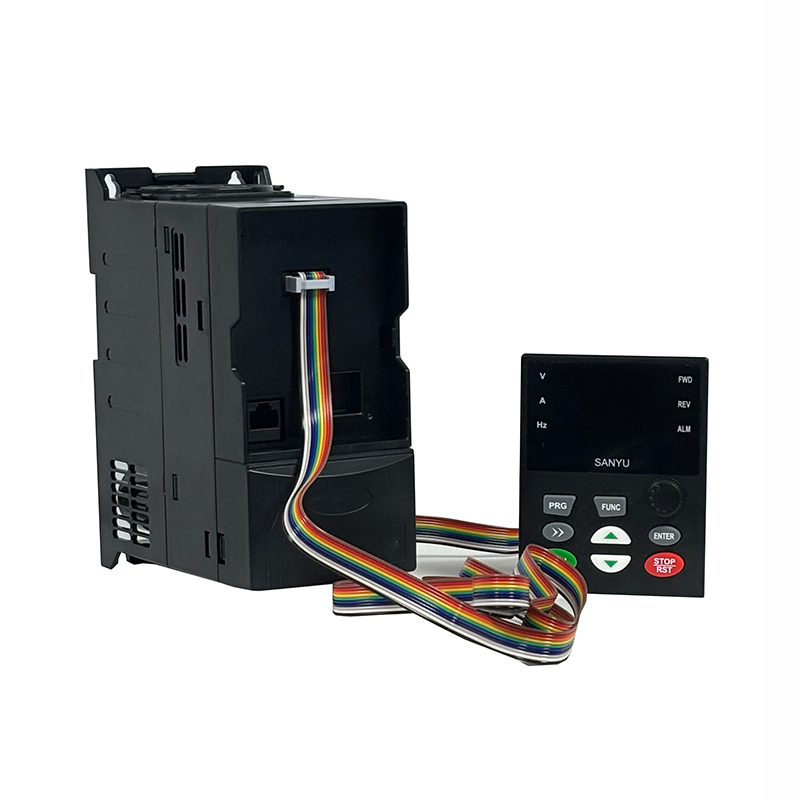

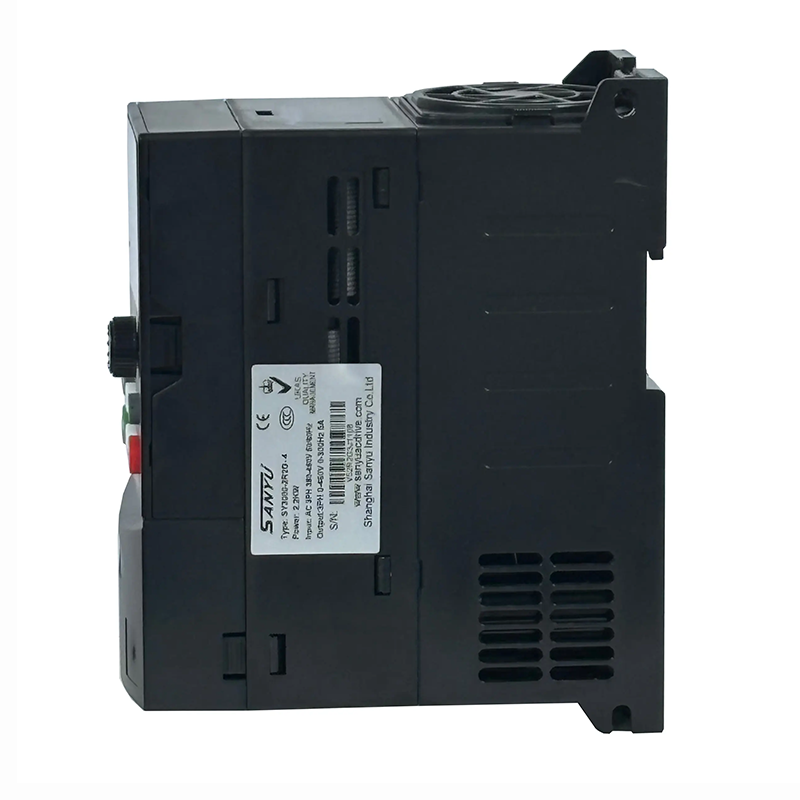

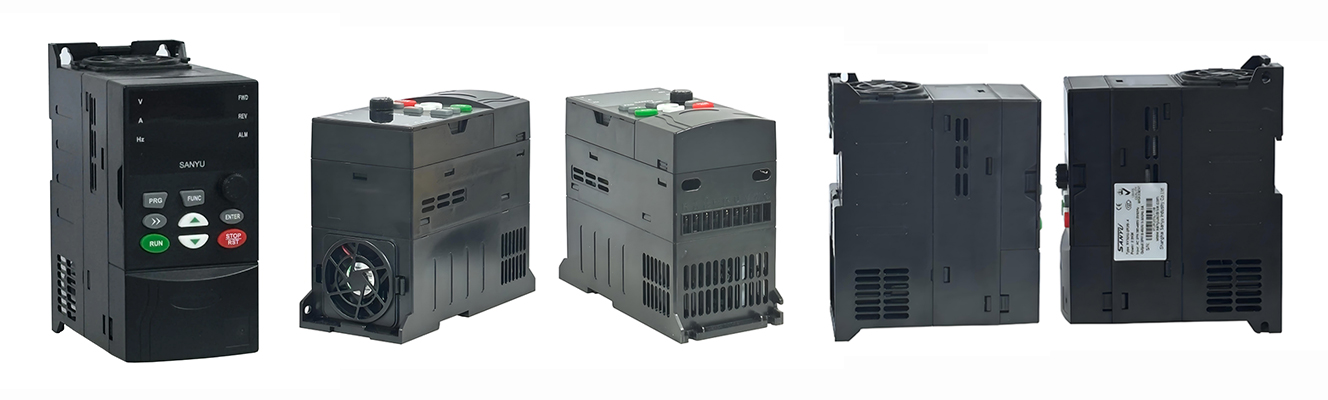

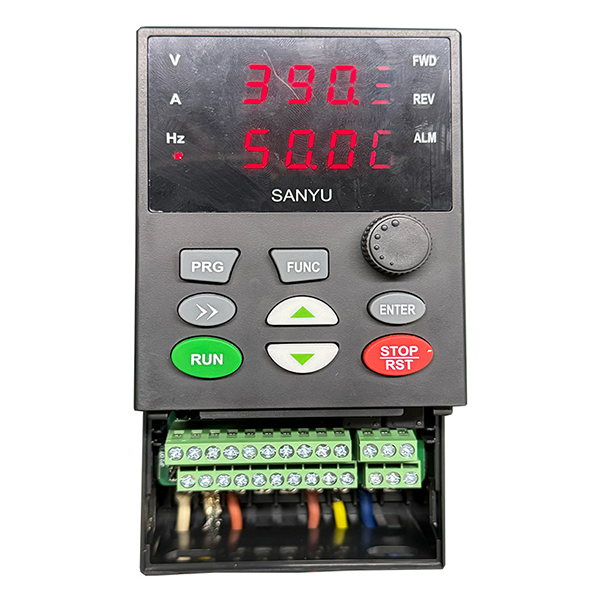

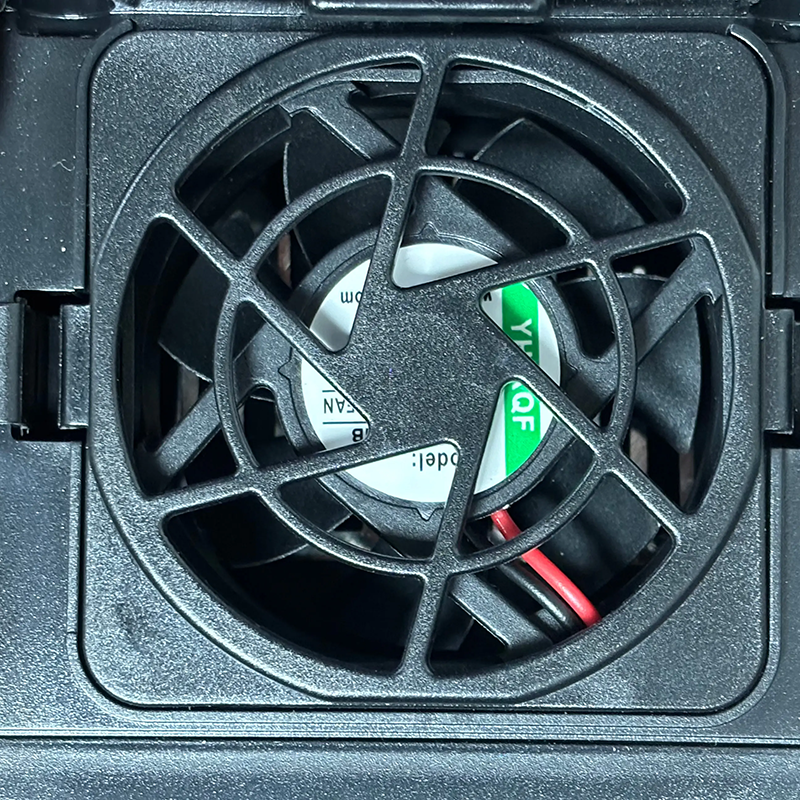

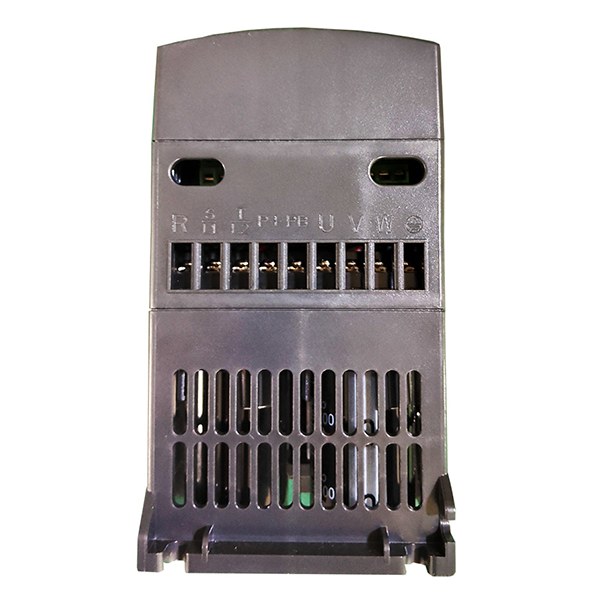

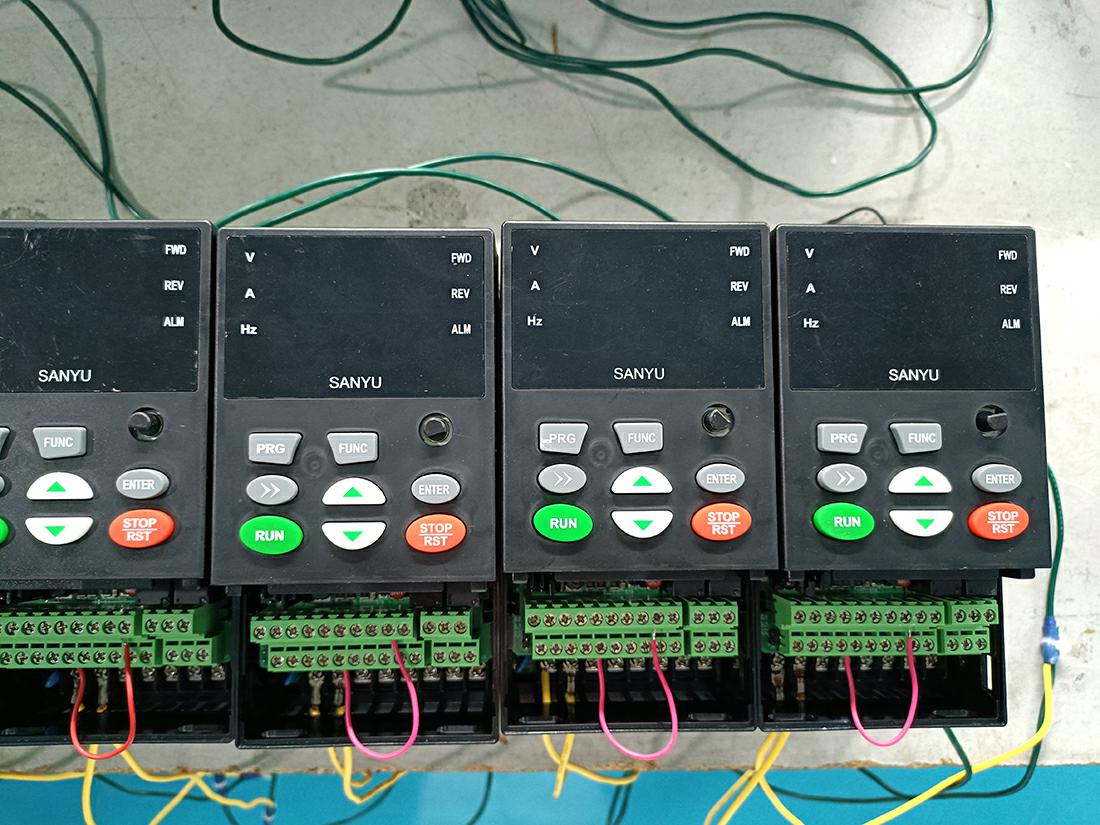

Products Shows

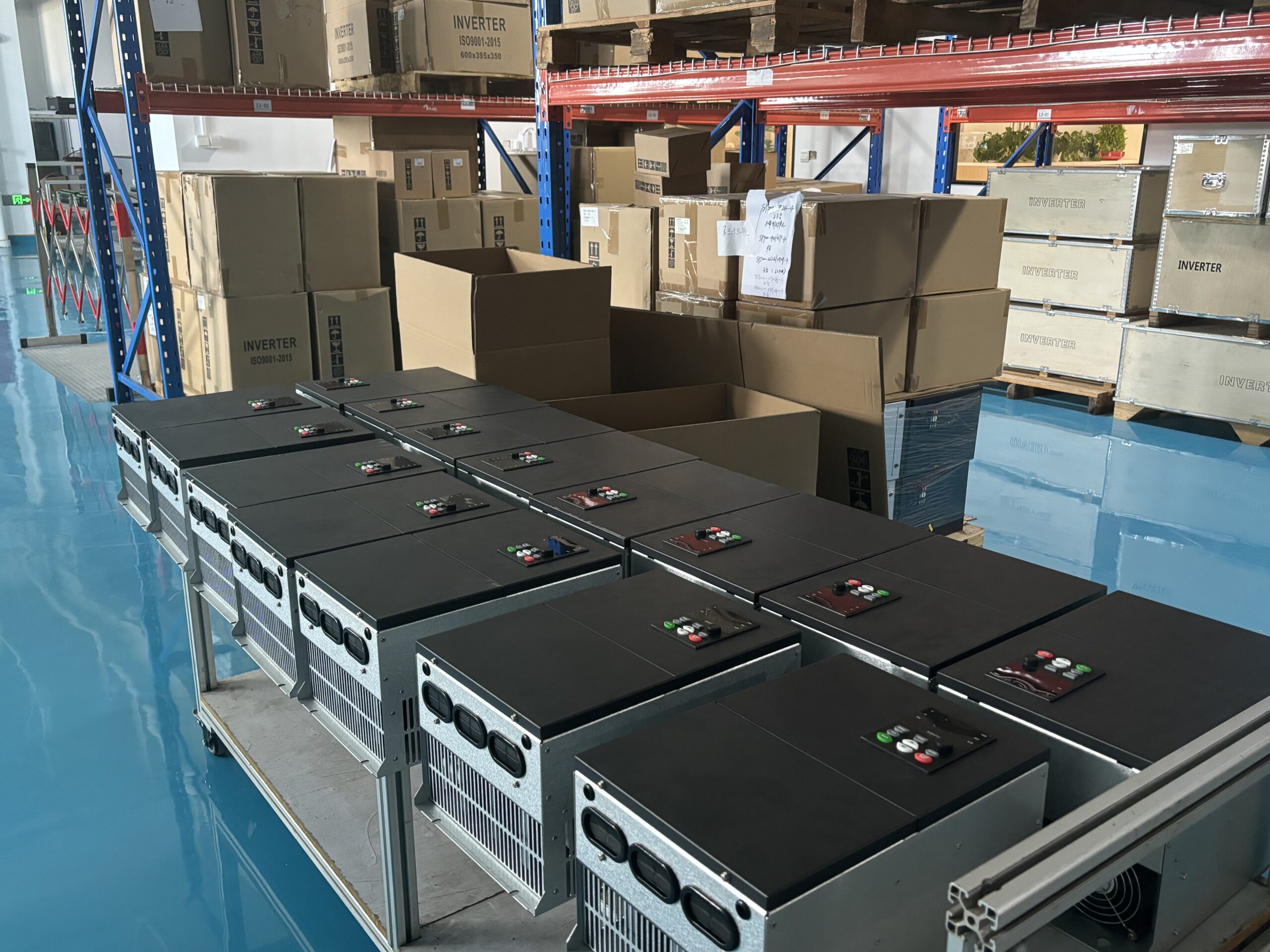

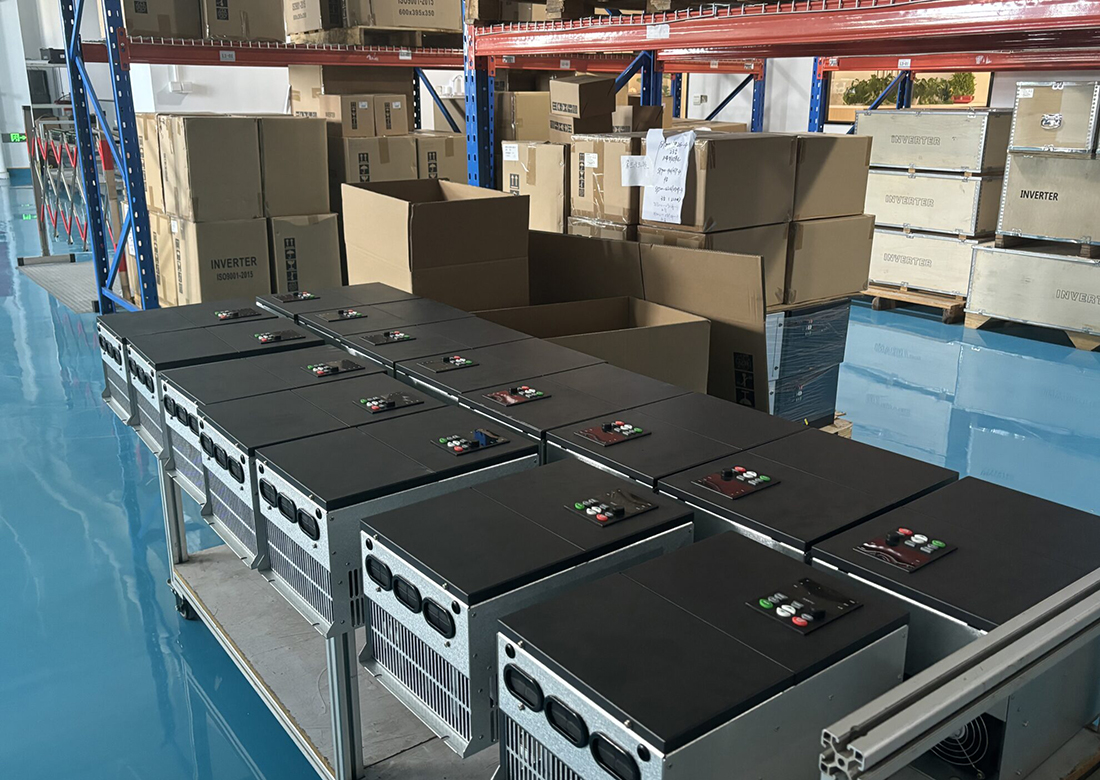

Packaging & Shipping

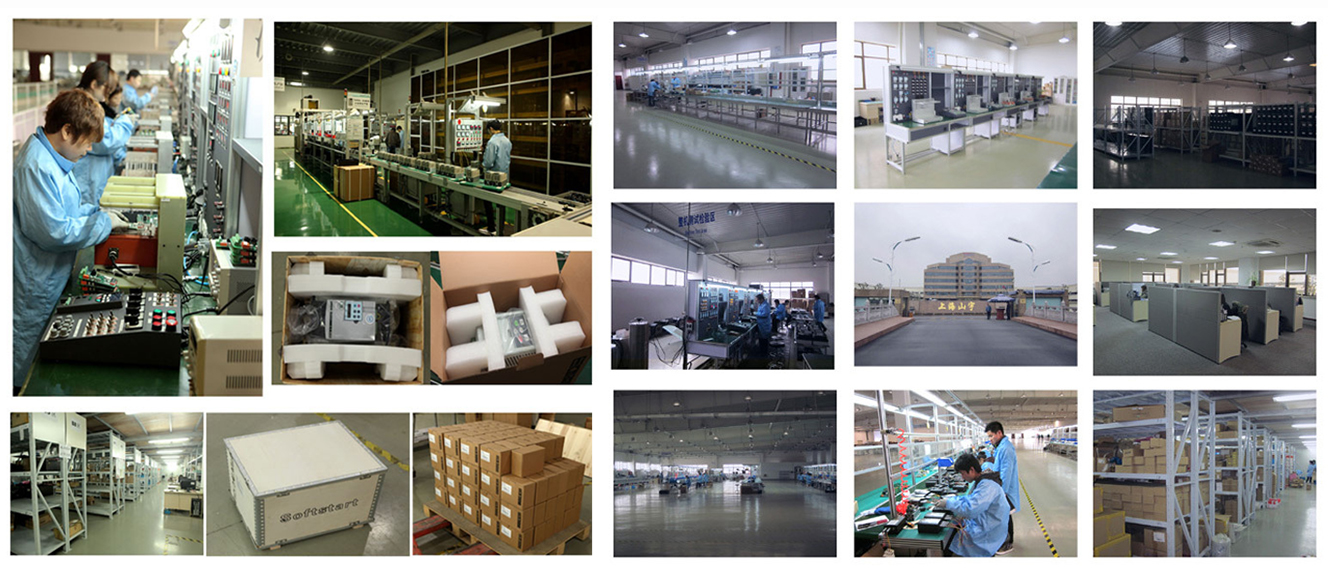

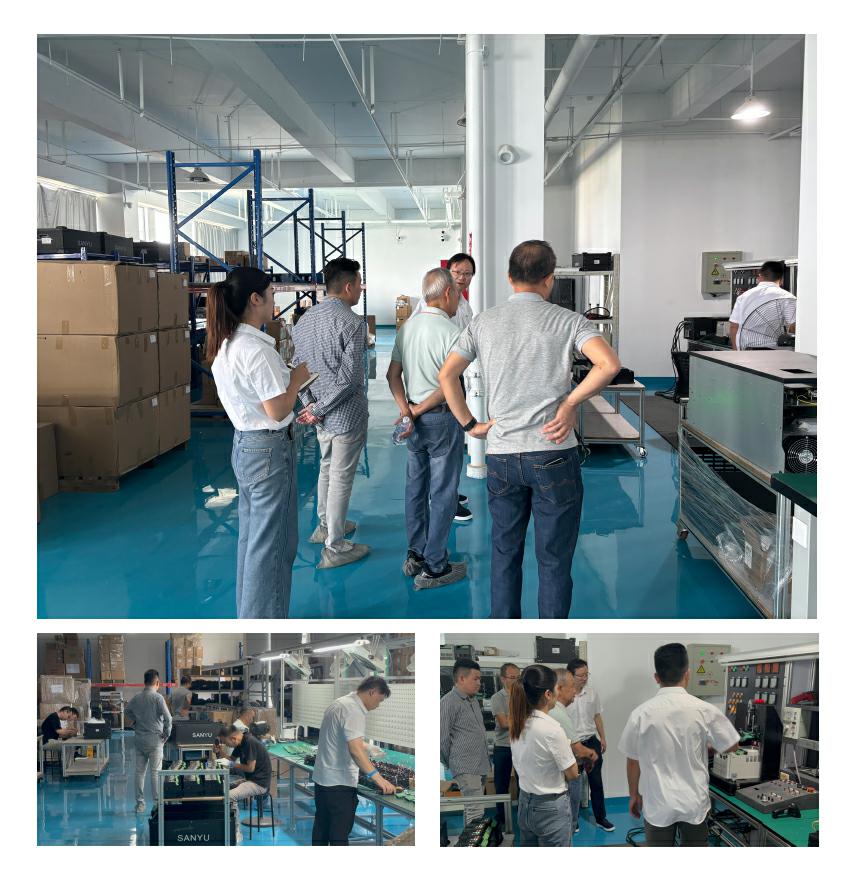

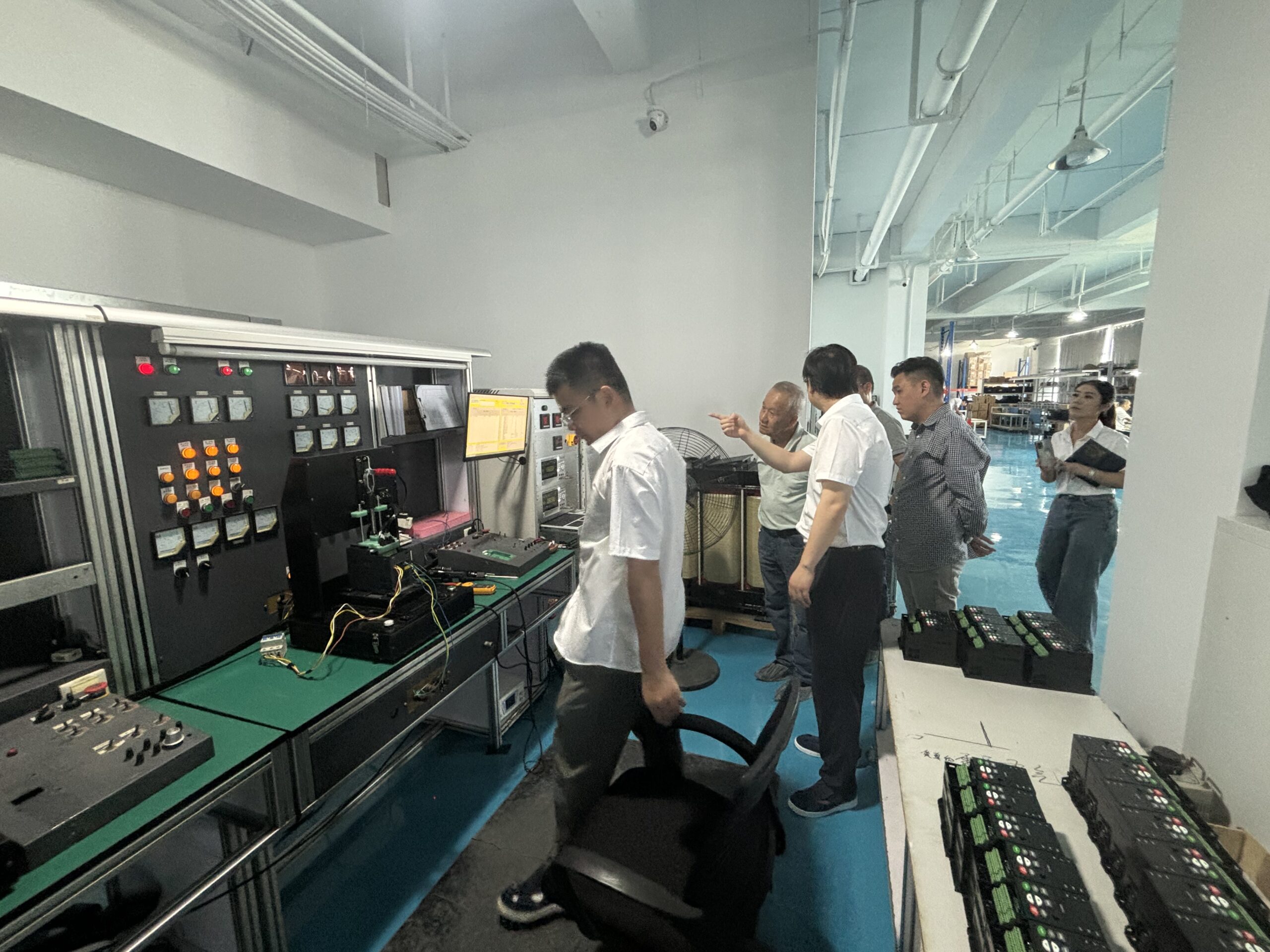

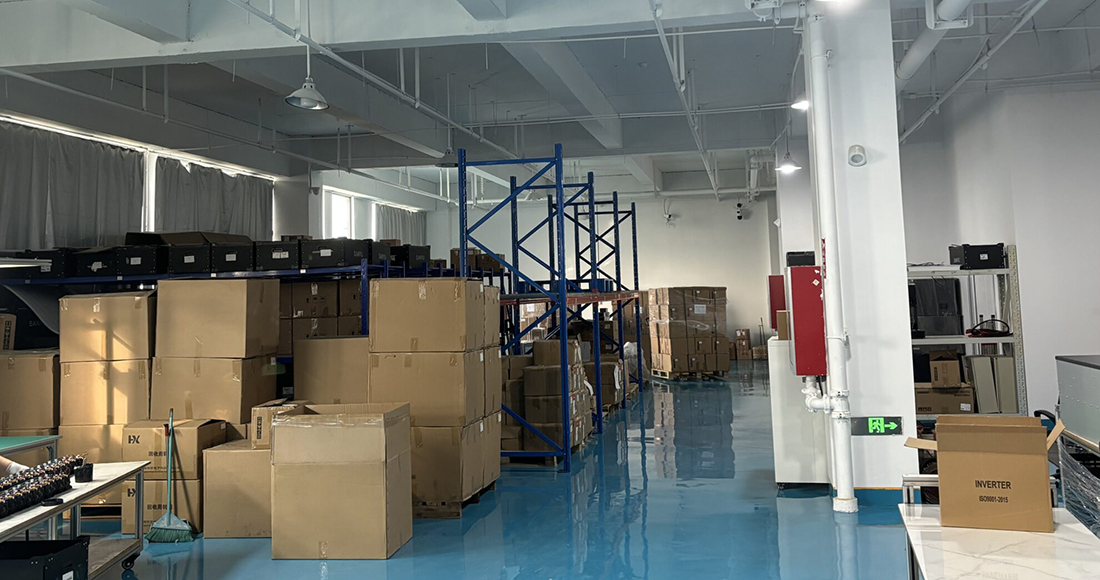

Company Information
Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in “Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port” etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
