15-500KW Electric Motor Starters will be the solution to organizations are ideal to save energy, keep your charges down while increasing effectiveness. This engine is top-quality and was built to deliver performance of superior dependability, when using the less power and providing a soft start that expands the life span of your motors.
The Sanyu Electrical Motor Starters are available with the technology latest and elements, making them a few of the most dependable and efficient available on the market. These starters use soft begin technology, which decreases the inrush up-to-date when starting up engines, reducing surges and this can be electric expanding the life span of an individual’s motors.
One of several things are great the Sanyu Electric engine Starters is the known fact that they are suitable for a selection of applications. They’ve been developed to be utilized with engines including 15KW to 500KW, making them suited to an assortment that is wide of in businesses. They are typically especially well-suited for big production flowers, commercial buildings, and applications are agricultural.
The Sanyu Electrical Motor Starters are very easy to put in and run, having a user-friendly screen that simplifies the procedure for startup. They will have a selection of functions, including overload security, voltage monitoring, and limiting is certainly present. These features make fully sure your engines are protected from harm, prolonging their lifespan and assisting you save money on repairs.
In addition, the Sanyu Electric Motor Starters are created to final. They’ve been built materials are using high-quality elements, making them durable. Additionally they come with a selection of security features, including short-circuit protection, period loss protection, and security is overheat. This means that your motors are protected at all times, ensuring reliable and operation is safe.

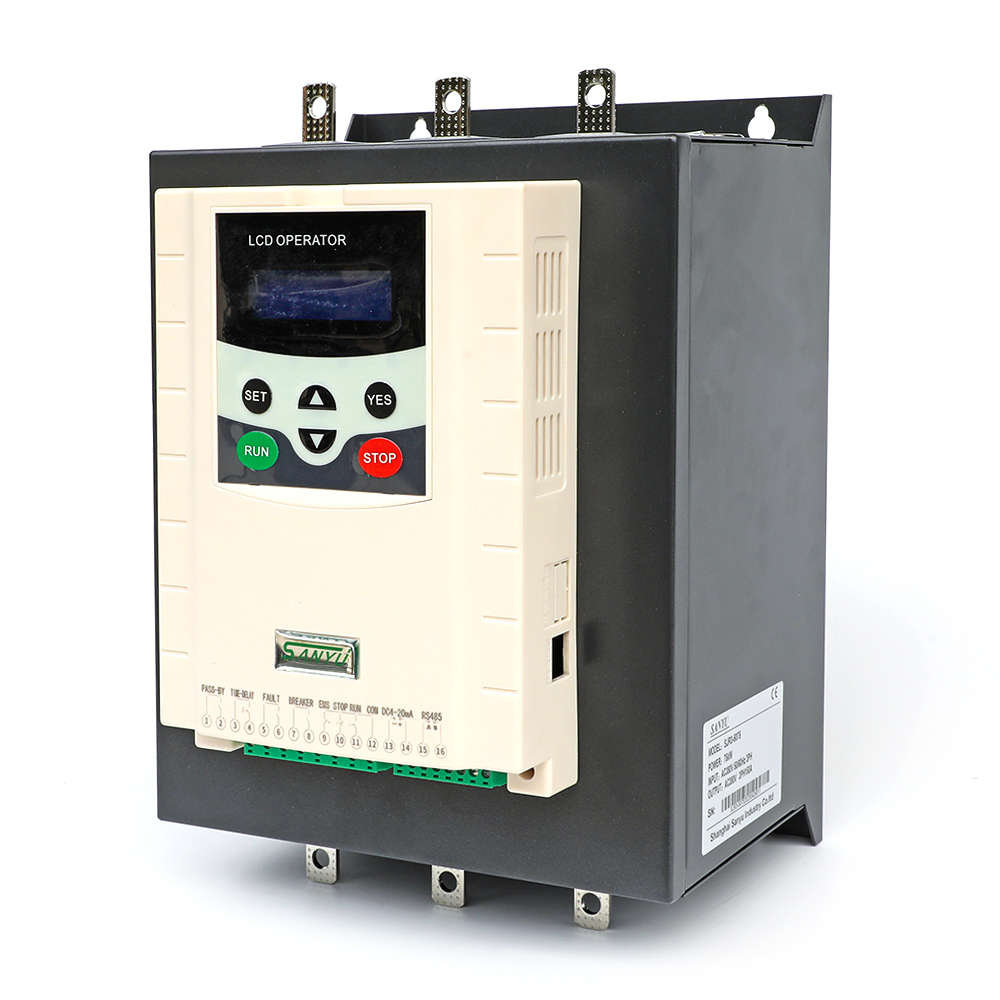

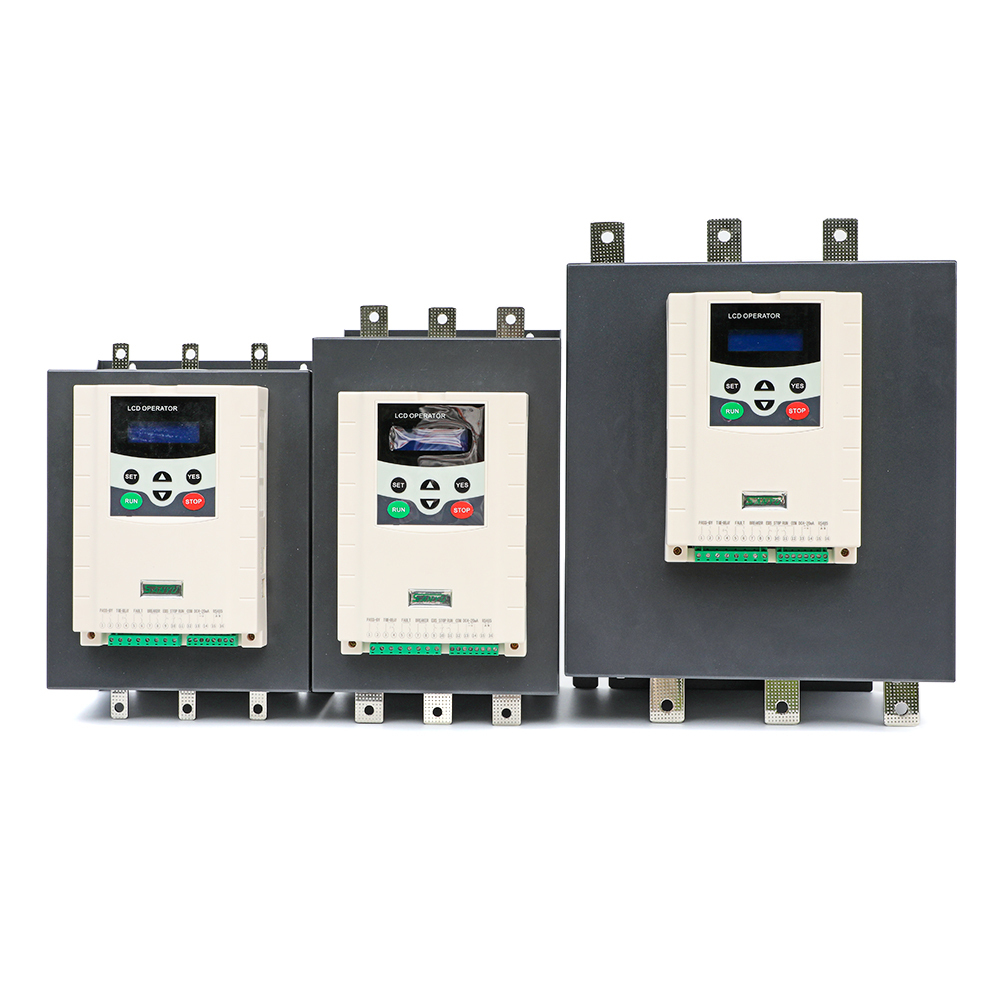

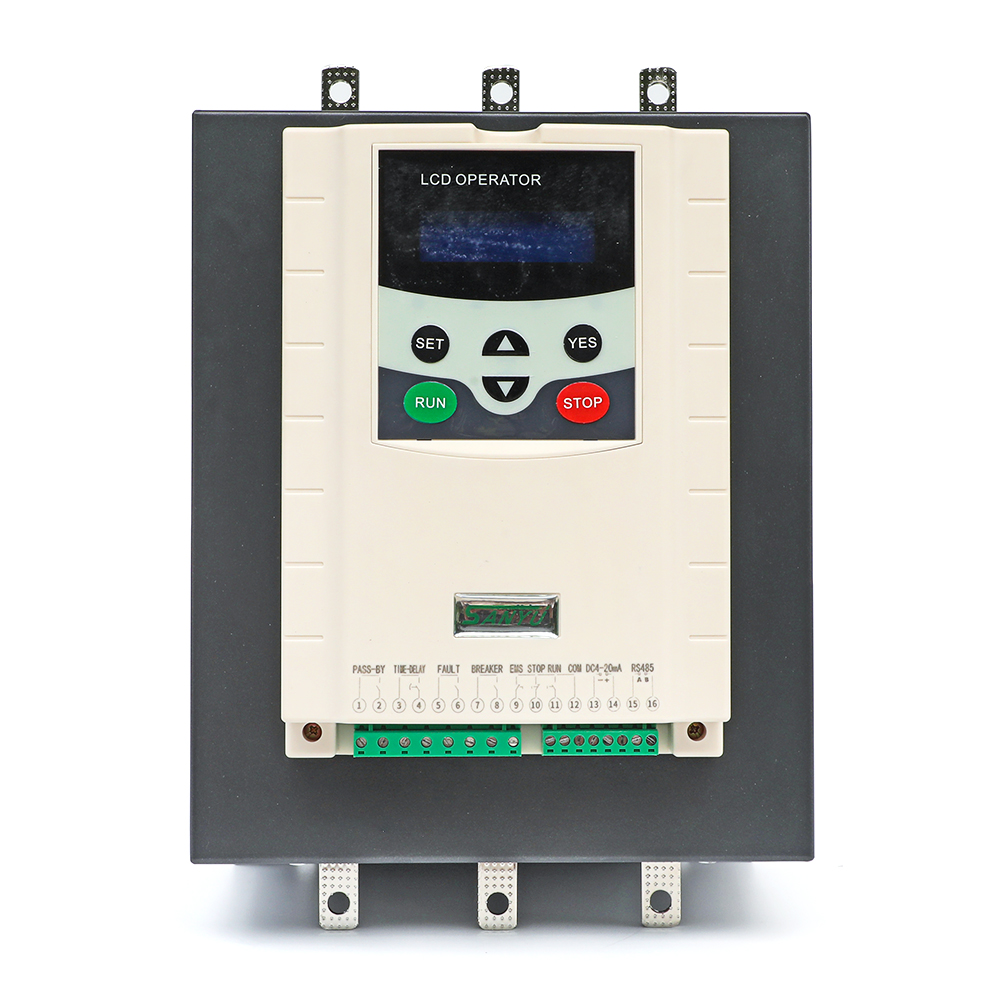

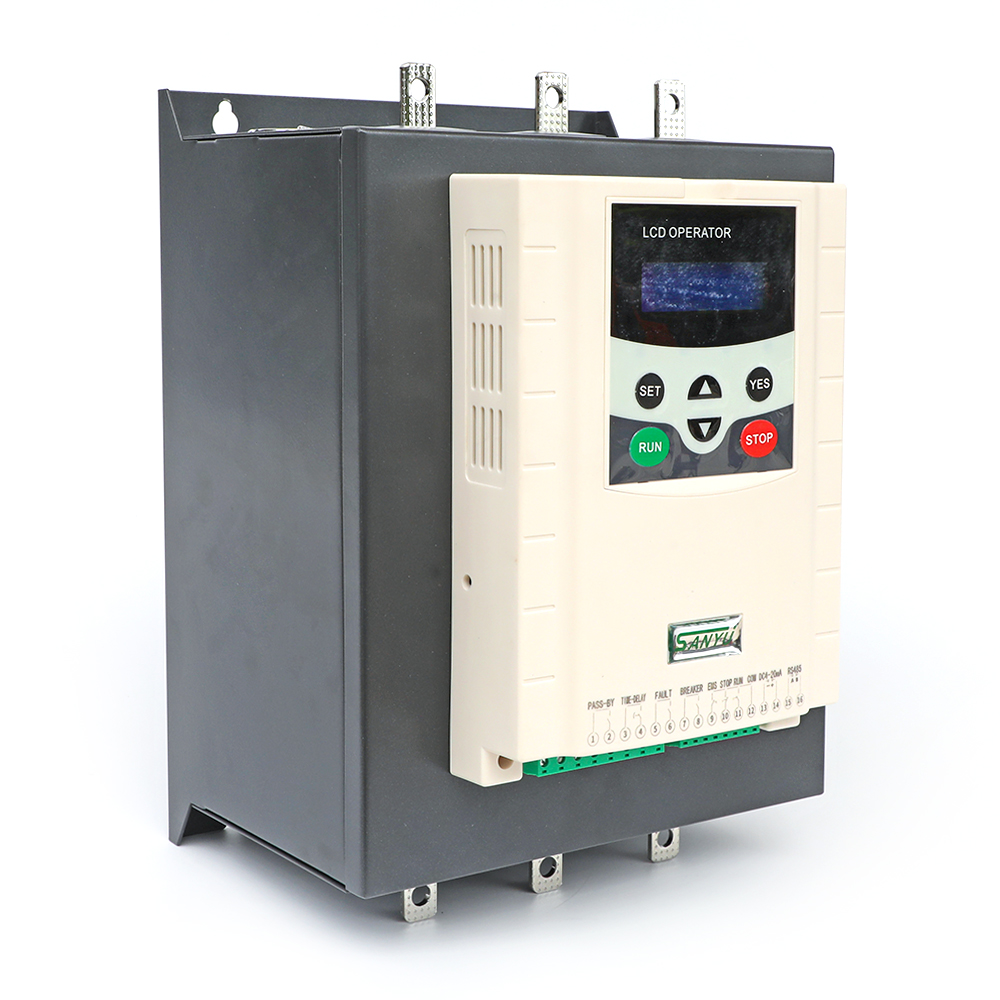

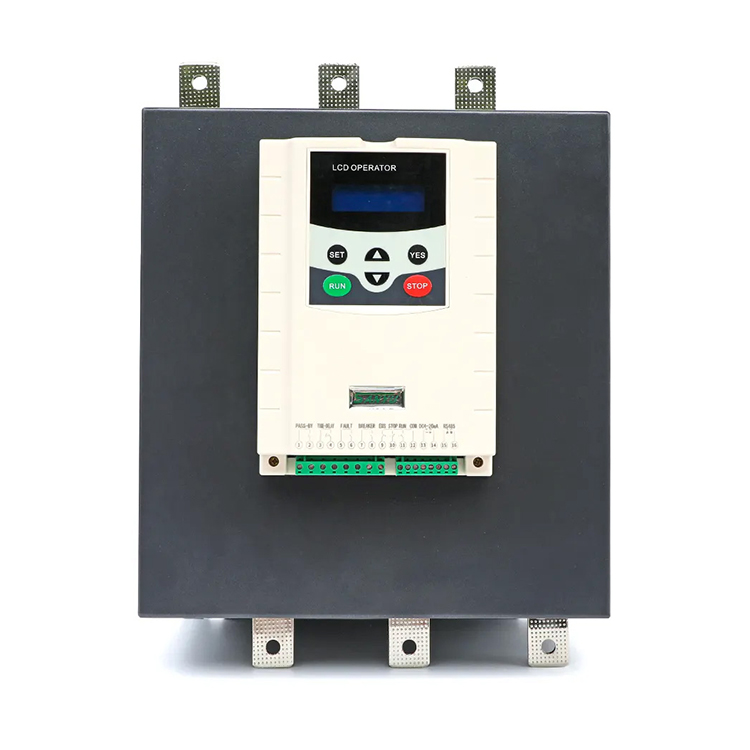

Sanyu 15-500KW Electric Motor Starters Save Energy Soft Starter
Products Description
SIR2-5000 series of SOFT STARTER
Features:
1. The unique closed-loop torque control of Sanyu (Sanyu patent), was specially designed for standard load and heavy load
2. The only on-line soft start, can not only take the contact or bypass running on-line, and can also use a contactor to bypass, while maintaining adequate protection.
3. In the period of acceleration and deceleration for sanyu soft start can linear control the supplying motors torque(a significant fluctuations of reduction in pressure)
4. Easy to adjust the slope and the starting torque
5. Advanced integrated protection functions: Over-current, overload, less on the load, lack of phase of input-output, overheating
6. Plug-in programmable I/O terminals: 4 logic input, 2 logic output, 3 relay output
7. Analog output, 0-20mA/4-20mA to switch
8. Motor preheat function
9. Built-in protection box PIC directly protect
10. Configure two sets of motor parameters, easy to adjust the control parameters
11. Dynamic fault memory
12. Electrical parameters, load conditions and running time
13. LCD liquid crystal display
14. RS485 communication, MODBUS standards protocol
15. Field bus communication and Ethernet, Fipio/Device Net and Profibus DP network communications
16.Power Suite Pocket PC and software
17. High-end products. Application meet the highest requirements.
18. Capacity up to 630KW.
SIR2-3000 series of SOFT STARTER
Features:
1. Soft start and soft stop mode
2. Possibility choose the type of load
3. Possibility choose the start characteristic
4. Possibility to control the system of two and three wire
5. Fault output relay
6. Programmable output relay
7. Instantaneous stop
8. Selecting a protection level
9. Six type of control mode
10. Access to the electrical motor parameters motor and load conditions during operation
11. LCD display with sounder alert
12. Communication module RS-485 with standard Modbus
13. Analog output 4-20mA
SIR2-2000 series of SOFT STARTER
Features:
1. The comprehensive protection functions of soft starter SJR2-2000 series highly integrates protection function of motor, so that the design, installation is more simple, reliable, and make a machine to be multifunctional. Multi-protection including over-voltage, under-voltage, over current, lack of phase of input and output, three-phase imbalance, short circuit.
2. Intelligent: After the traditional soft starter settle orders of time and the starting voltage value, no matter how light and heavy load, the program will finish the progress of soft starter in accordance with the order of setting time. And the caused unnecessary waste of the equipment while a light load, such as some equipment do not allow low voltage to start long time; while heavy load, the accumulation of time causes the damage of the soft starter components. SJR2 completely avoid the artificial defects, it can use the way of induction of the load to start the soft starter.
3. The appearance: the design carefully created a beautiful appearance and made the mechanical structure to become better. The pedestal, radiator and shell of SJR2, were made by the aluminum alloy casting, and make a more reasonable and effective solution to the soft starter power component cooling problem (Sanyu patents); beautiful shell increases the overall quality, and make people feel comfortable, noble, and elegant.
Model
Applicable Motor (KW)
Output current (A)
Dimension (L*W*H mm)
Weight (KG)
SJR2-5005
5.5
13
260*160*195
6.3
SJR2-5007
7.5
17
260*160*195
6.3
SJR2-5011
11
25
260*160*195
6.3
SJR2-5015
15
32
260*160*195
6.3
SJR2-5017
17
35
260*160*195
6.3
SJR2-5018
18.5
37
260*160*195
6.3
SJR2-5022
22
45
260*160*195
6.3
SJR2-5030
30
60
260*160*195
6.3
SJR2-5037
37
75
260*160*195
6.3
SJR2-5045
45
90
260*160*195
6.3
SJR2-5055
55
110
340*180*240
10.5
SJR2-5075
75
150
340*180*240
10.5
SJR2-5090
90
176
375*288*265
23.0
SJR2-5110
110
210
375*288*265
23.0
SJR2-5132
132
253
375*288*265
26.0
SJR2-5160
160
300
375*288*265
26.0
SJR2-5200
200
340
375*288*265
52.0
SJR2-5250
250
380
560*395*288
52.0
SJR2-5320
320
420
560*395*288
52.0
SJR2-5400
400
470
630*540*315
52.0
Applications
Packages and Dilivery
About Us
Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in “Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Airport” etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
Certifications
Exhibition
2013 Hanover Messe
2013 Australia Exhibition
2014 Morocco Exhibition
2015 Mongolia Exhibition
FAQ
1. Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2. Q: Can I get some samples?
A: Yes, we are glad to offer you samples. After price and order confirmed, the samples fee will be regressed.
3. Q: When can I get the products?
A: Your products will be arrived you’re the nearest domestic port after order confirmed, it’s about 30 days.
4. Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
5. Can I buy other factory’s products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 year’s .in the business with extensive knowledge of technology and market. Our good reputation in China has been awarded by Alibaba Group as its selected business partner.
