Product Overview

Intelligent High Quality Multi-Function 3 Phase 380V AC Electric Motor 15-500 KW Soft Starter For Motor, the technique is real wise to give your motor the energy it requires while keeping security and efficiency. This technique will work for individuals who end up trying to find a dependable and beginner which will be soft on the engine.

This novice is precise that soft smooth with control and also this engine’s begin procedure is stopping its advanced control system that creates feeling. This technology isn’t just energy-saving, but additionally it stretches the lifespan connected to motor by preventing tear use is not required.

The SANYU Intelligent High Quality Multi-Function 3 Phase 380V AC Electric Motor 15-500 KW Soft Starter For Motor would benefit engines having a capability between 15 and 500 KW. It offers an output of 380V, and therefore may be ideal for heavy-duty applications are commercial. This technique satisfies the security for worldwide quality criteria, ensuring dependable and safe start-ups each and every time.

The novice is quite soft made with a multi-function control interface, making it very easy to run. This specific feature may be the particular someone to select the starting mode by choosing between soft begin, voltage ramp start, and present begin ramp. It is possible to set the start current, acceleration time, and deceleration time just by adjusting the knob concerning the software. Furthermore, the starter is soft laden with a user-friendly Diode which display light-emitting real-time information about the engine’s running status, making this a breeze to monitor and troubleshoot problems.

Among the list of better highlights of this beginner is its ability to avoid voltage surges and surges are present motor beginning. This can be in order to avoid voltage surges and surges are present motor beginning among the list of better highlights of this beginner. This not simply stops problems for the engine, but it additionally protects other gear from power. The starter also provide a protection is integrated safeguards against overload, overvoltage, under voltage, and period failure, ensuring protection of maximum dependability of operation.

Products Description

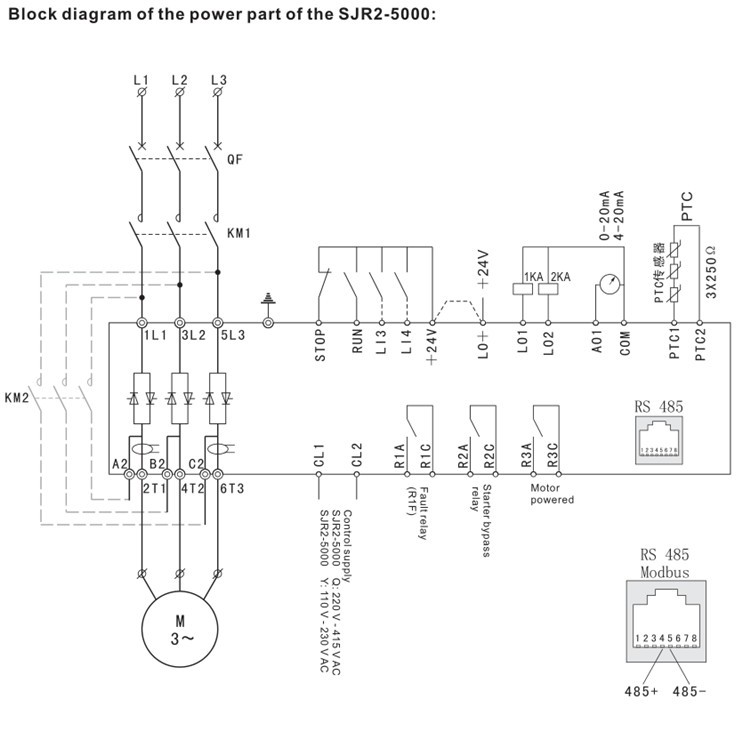

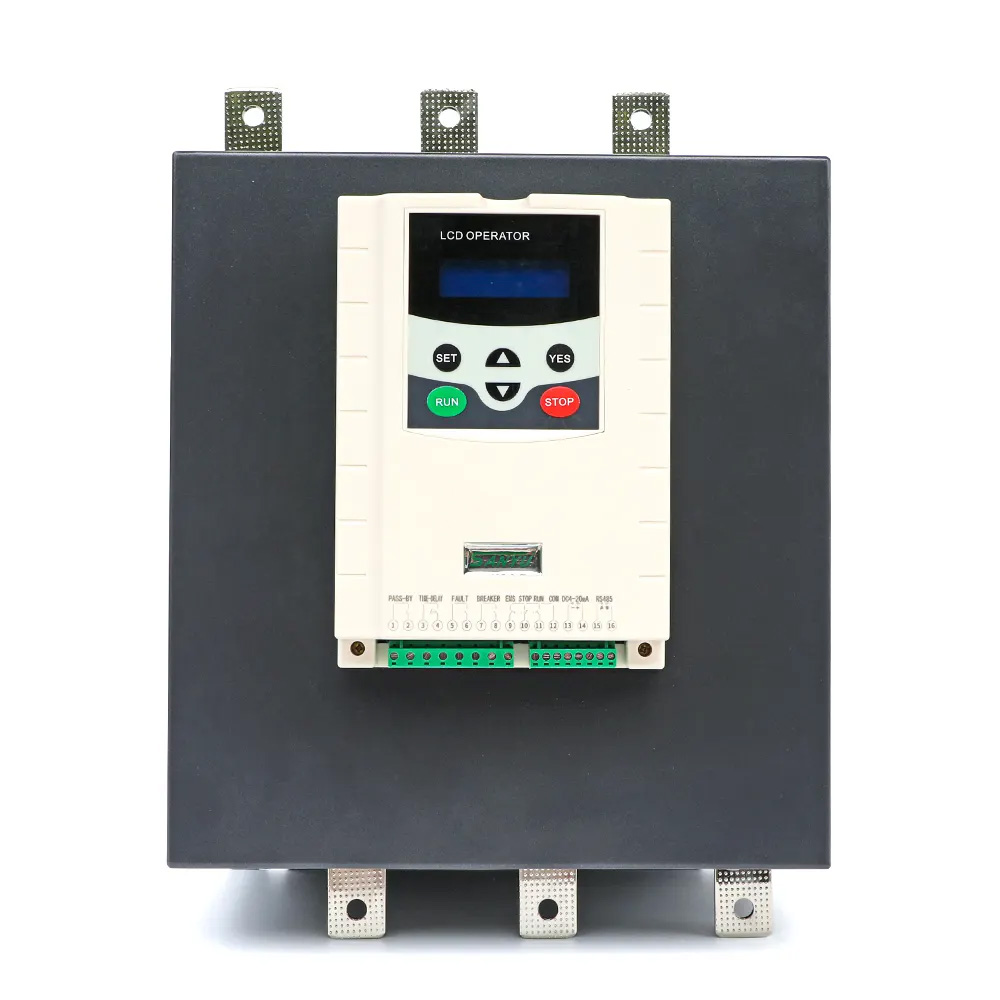

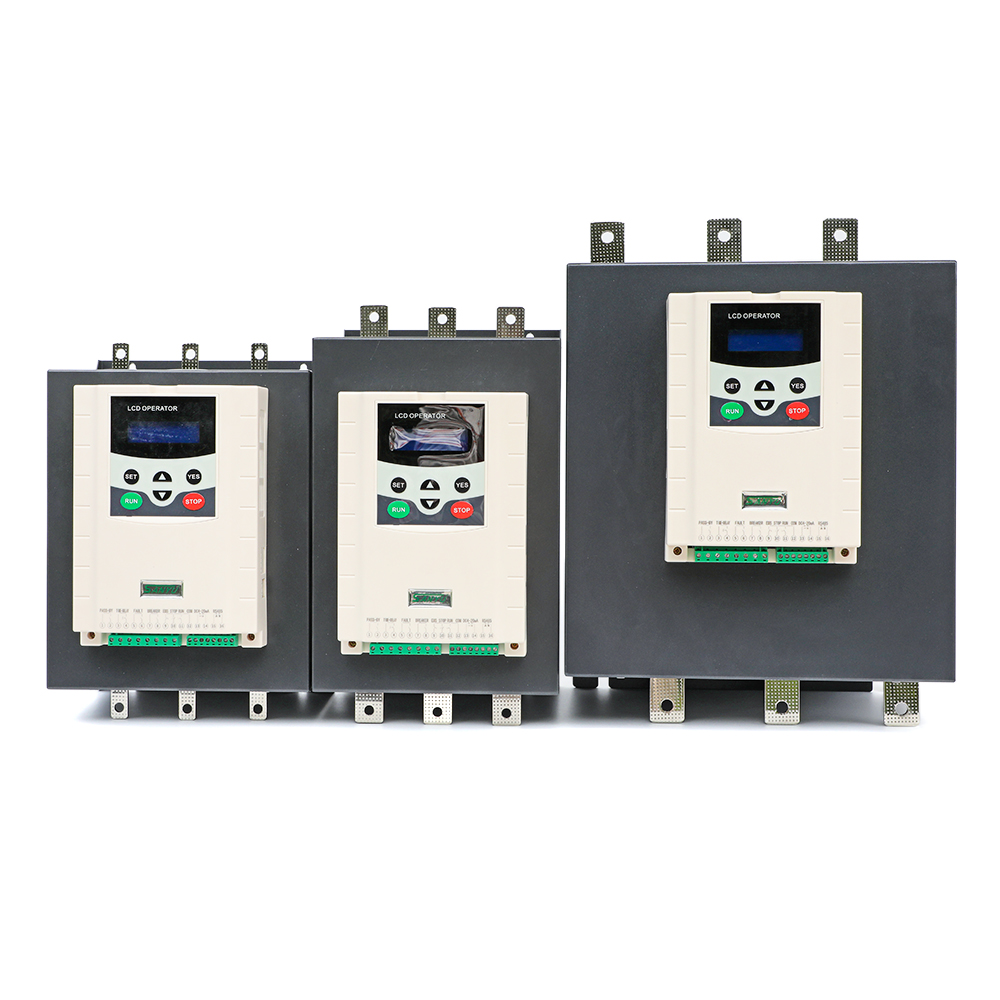

SIR2-5000 series of SOFT STARTER

Features:
1. The unique closed-loop torque control of Sanyu (Sanyu patent), was specially designed for standard load and heavy load
2. The only on-line soft start, can not only take the contact or bypass running on-line, and can also use a contactor to bypass, while maintaining adequate protection.
3. In the period of acceleration and deceleration for sanyu soft start can linear control the supplying motors torque(a significant fluctuations of reduction in pressure)
4. Easy to adjust the slope and the starting torque
5. Advanced integrated protection functions: Over-current, overload, less on the load, lack of phase of input-output, overheating
6. Plug-in programmable I/O terminals: 4 logic input, 2 logic output, 3 relay output
7. Analog output, 0-20mA/4-20mA to switch
8. Motor preheat function
9. Built-in protection box PIC directly protect
10. Configure two sets of motor parameters, easy to adjust the control parameters
11. Dynamic fault memory
12. Electrical parameters, load conditions and running time
13. LCD liquid crystal display
14. RS485 communication, MODBUS standards protocol
15. Field bus communication and Ethernet, Fipio/Device Net and Profibus DP network communications
16.Power Suite Pocket PC and software
17. High-end products. Application meet the highest requirements.
18. Capacity up to 630KW.

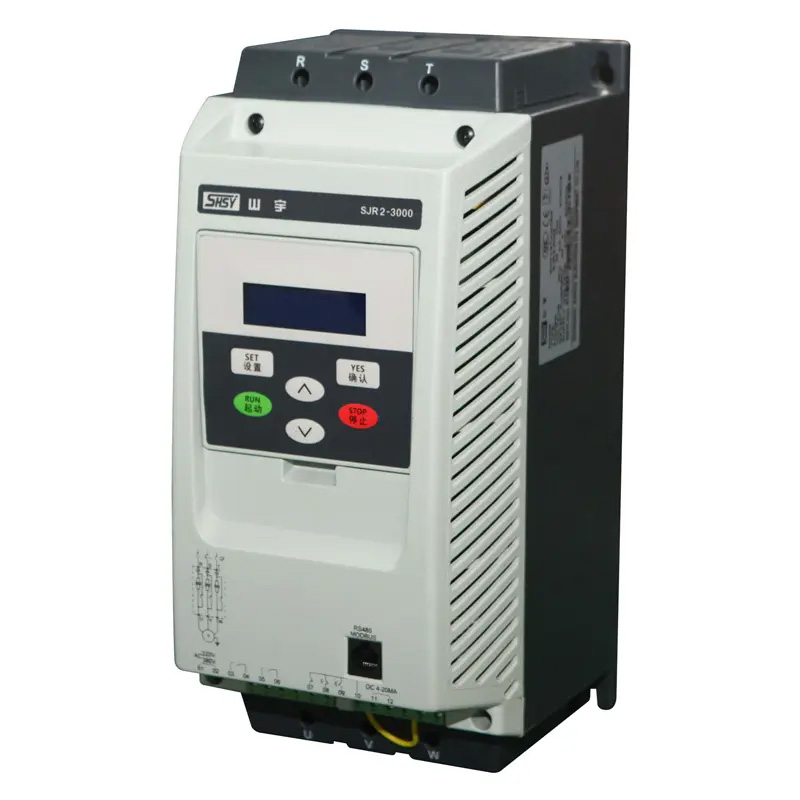

SIR2-3000 series of SOFT STARTER

Features:
1. Soft start and soft stop mode
2. Possibility choose the type of load
3. Possibility choose the start characteristic
4. Possibility to control the system of two and three wire
5. Fault output relay
6. Programmable output relay
7. Instantaneous stop
8. Selecting a protection level
9. Six type of control mode
10. Access to the electrical motor parameters motor and load conditions during operation
11. LCD display with sounder alert
12. Communication module RS-485 with standard Modbus
13. Analog output 4-20mA

SIR2-2000 series of SOFT STARTER

Features:
1. The comprehensive protection functions of soft starter SJR2-2000 series highly integrates protection function of motor, so that the design, installation is more simple, reliable, and make a machine to be multifunctional. Multi-protection including
over-voltage, under-voltage, over current, lack of phase of input and output, three-phase imbalance, short circuit.
2. Intelligent: After the traditional soft starter settle orders of time and the starting voltage value, no matter how light and heavy load, the program will finish the progress of soft starter in accordance with the order of setting time. And the caused unnecessary waste of the equipment while a light load, such as some equipment do not allow low voltage to start long time; while heavy load, the accumulation of time causes the damage of the soft starter components. SJR2 completely avoid the artificial defects, it can use the way of induction of the load to start the soft starter.
3. The appearance: the design carefully created a beautiful appearance and made the mechanical structure to become better. The pedestal, radiator and shell of SJR2, were made by the aluminum alloy casting, and make a more reasonable and effective solution to the soft starter power component cooling problem (Sanyu patents); beautiful shell increases the overall quality, and make people feel comfortable, noble, and elegant.

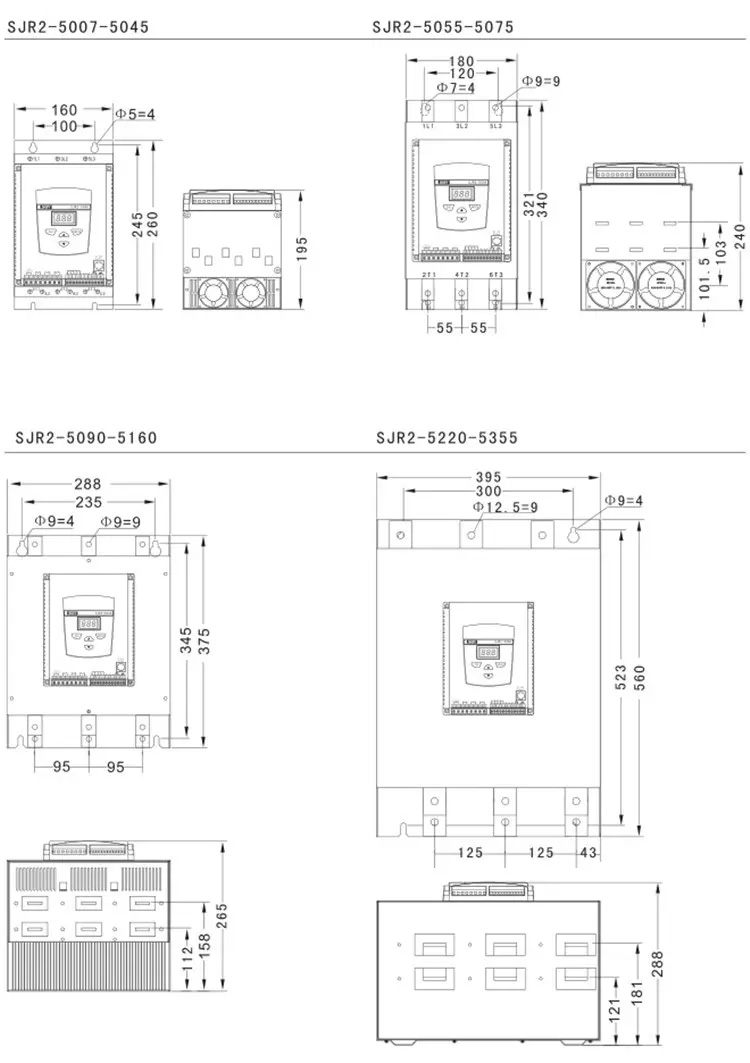

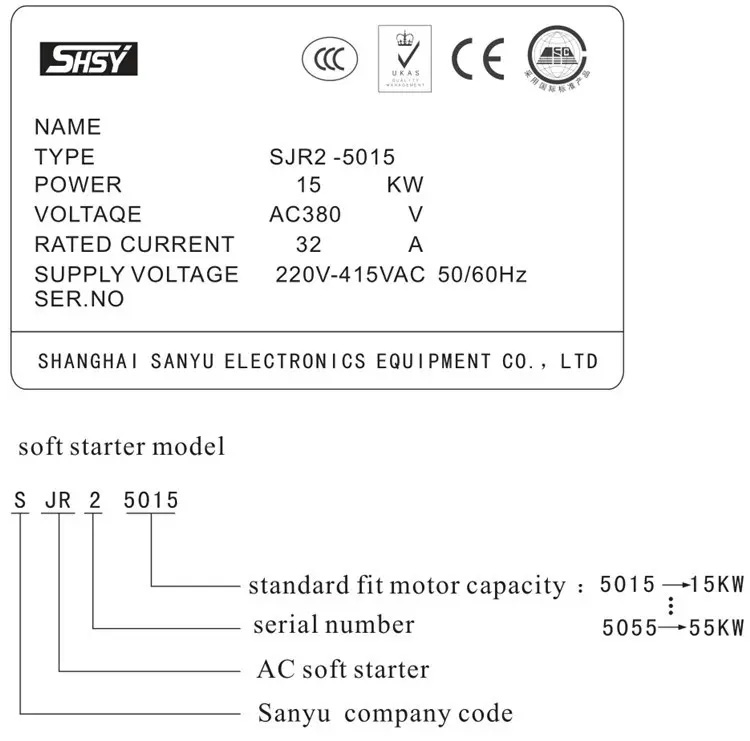

Model	Applicable Motor (KW)	Output current (A)	Dimension *(LWH mm)*	Weight (KG)
SJR2-5005	5.5	13	260160195	6.3
SJR2-5007	7.5	17	260160195	6.3
SJR2-5011	11	25	260160195	6.3
SJR2-5015	15	32	260160195	6.3
SJR2-5017	17	35	260160195	6.3
SJR2-5018	18.5	37	260160195	6.3
SJR2-5022	22	45	260160195	6.3
SJR2-5030	30	60	260160195	6.3
SJR2-5037	37	75	260160195	6.3
SJR2-5045	45	90	260160195	6.3
SJR2-5055	55	110	340180240	10.5
SJR2-5075	75	150	340180240	10.5
SJR2-5090	90	176	375288265	23.0
SJR2-5110	110	210	375288265	23.0
SJR2-5132	132	253	375288265	26.0
SJR2-5160	160	300	375288265	26.0
SJR2-5200	200	340	375288265	52.0
SJR2-5250	250	380	560395288	52.0
SJR2-5320	320	420	560395288	52.0
SJR2-5400	400	470	630540315	52.0

Applications

Packages and Dilivery

About Us

Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in “Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Airport” etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.

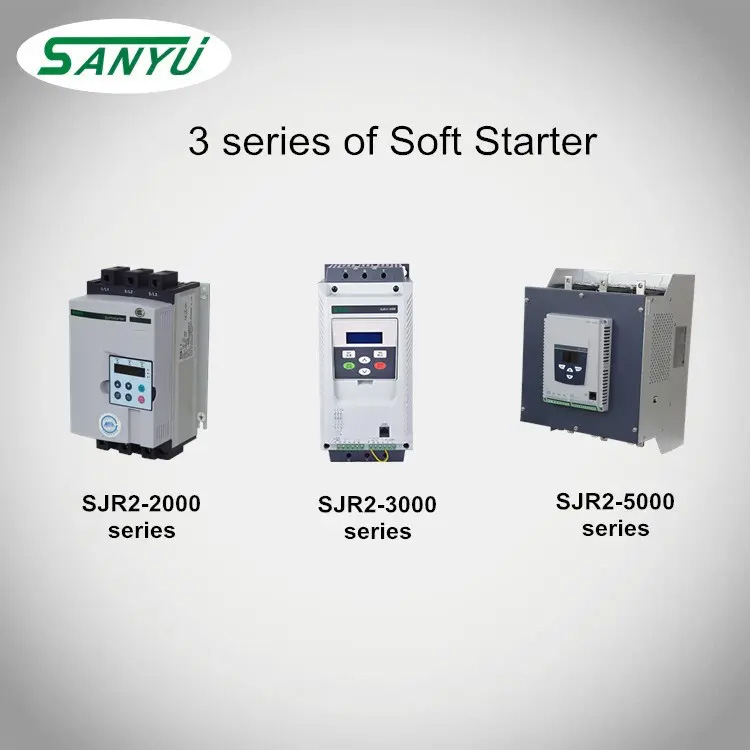

We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
