Product Model:SY8600
Material: Nylon PA66,NBR
Thead specification: Metric,PG,G,NPT.
Working temperature;-40-℃ t0 100-Cinstatic state, instantaneous heat resistanceup t0 120c-20°Cto 80″c in dynamic state, instantaneous heat resistan up to 100°℃.
Characteristics: Special design of clamping dia and rubber part, large range in clamping cable,ultra-strong stretching resistance,waterproof, dustpoof,and high ability
to resist, salt, acid ,alkali, alcohol, grease and common slovent.
Color:Black, grey as special colors(white,red,blue,dark grey)that can be designed at request.

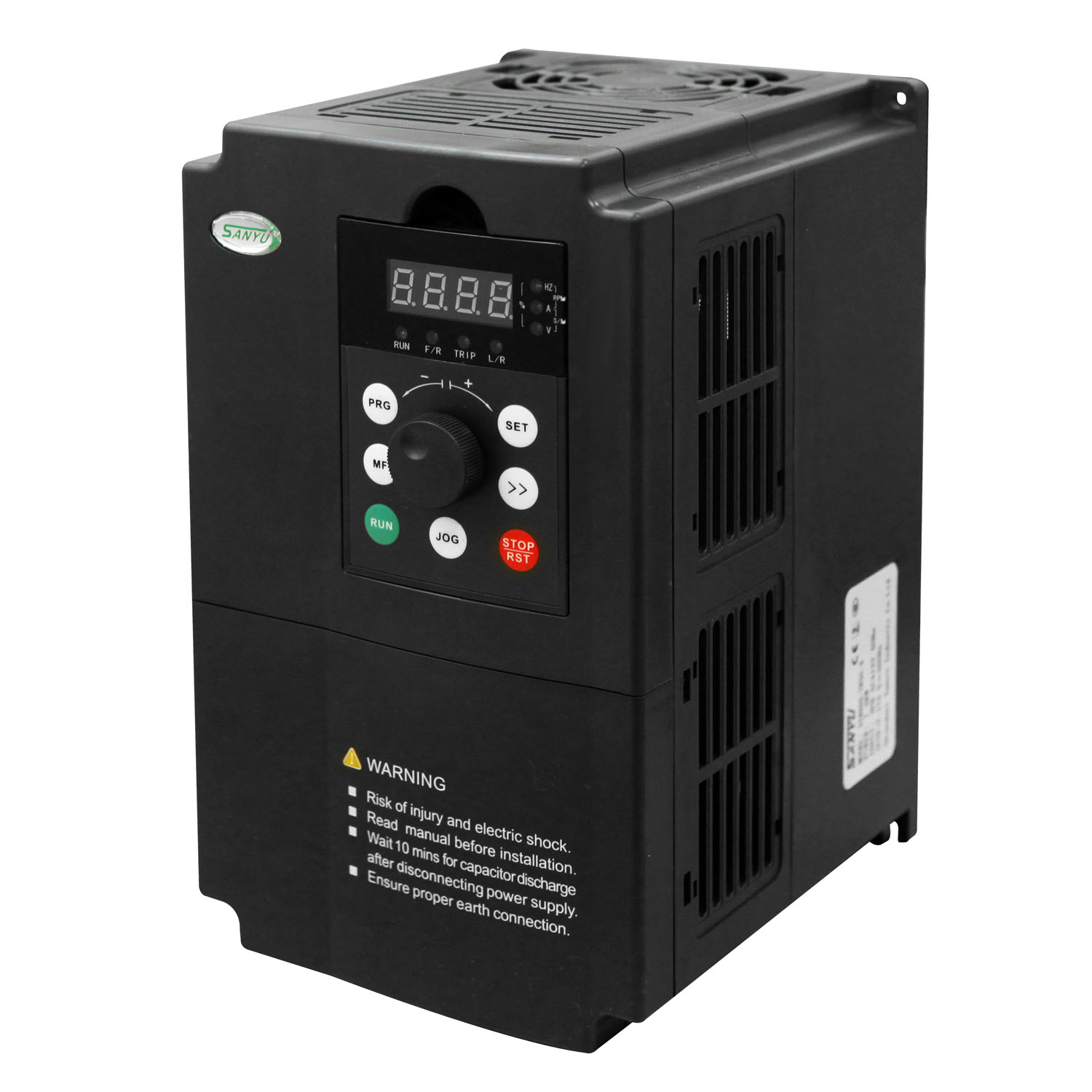

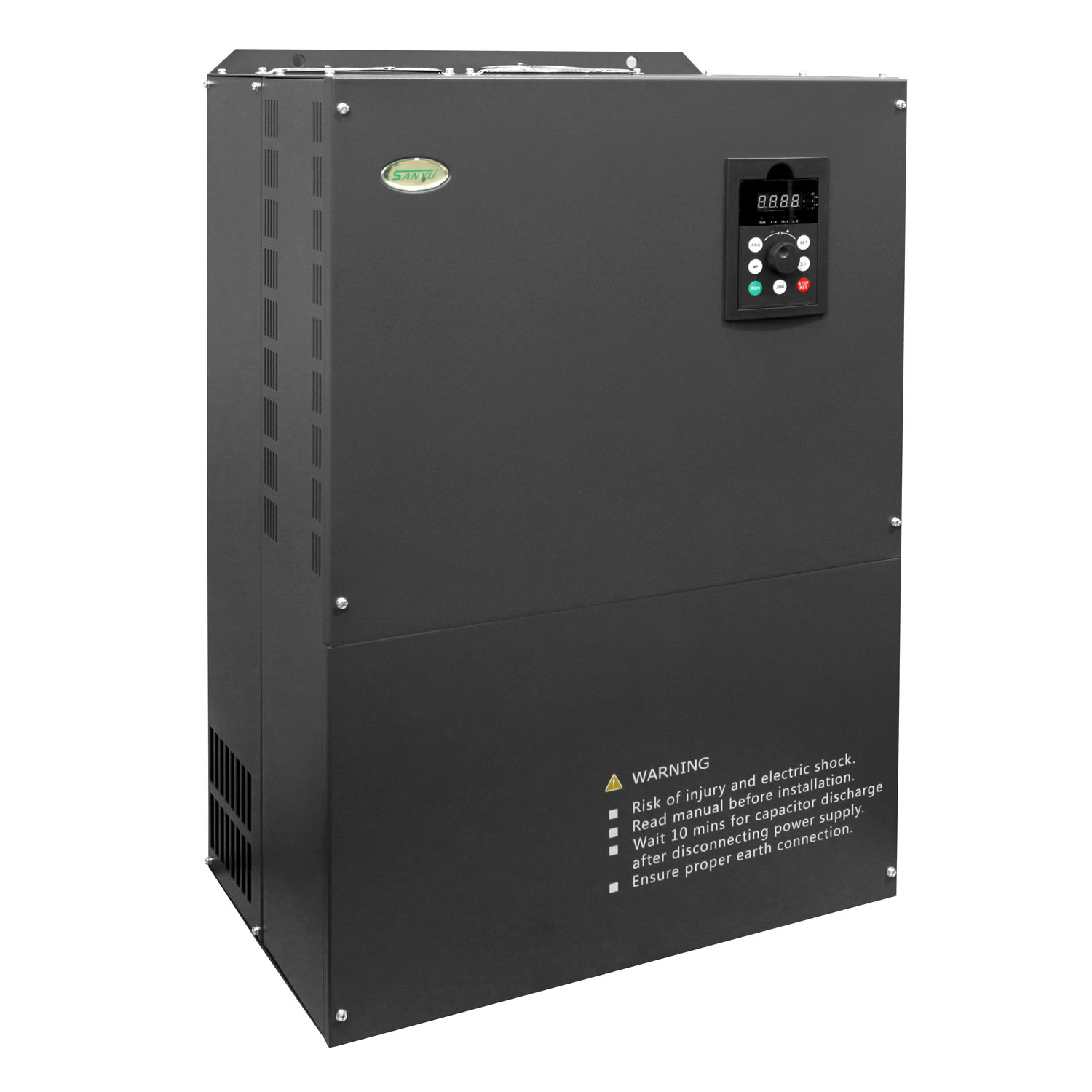

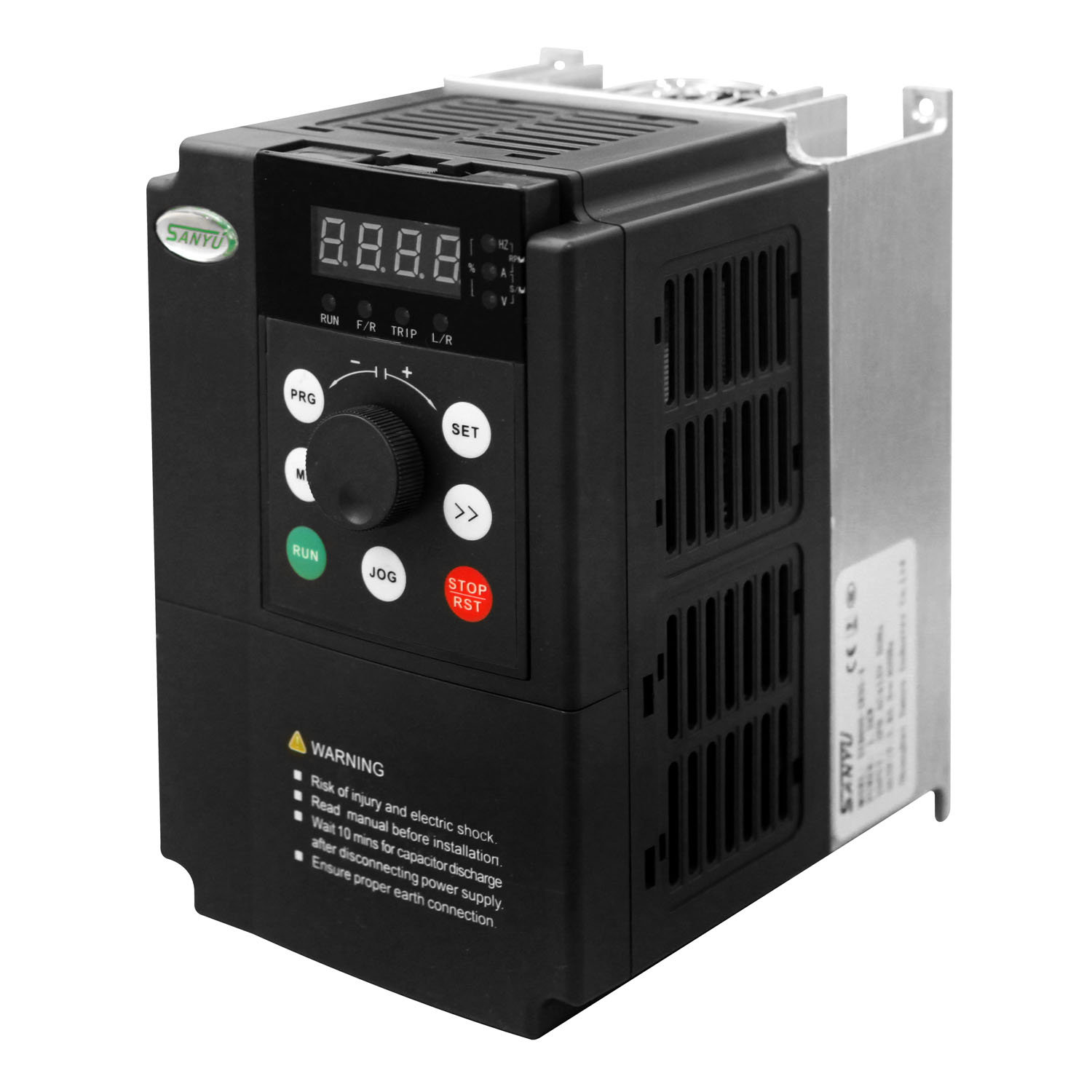

The SY8600 AC 220V 380V frequency inverter may be the perfect solution for anyone running a commercial machine that needs rate control. With a frequency variety of 50Hz to 60Hz, this VFD (Variable Frequency Drive) or VSD (Variable Speed Drive), are designed for many various applications.
Created by the well-known brand name that is well-respected, this regularity inverter is made of high-quality materials and features advanced technology. It is engineered to fulfill the needs of probably the many challenging environments being industrial while nevertheless being a simple task to use.
One of many key features of this regularity inverter is its power to adjust the engine rate to match the demands are precise utilizing the application. This means users can help to save yourself energy, reduce wear and tear in the machinery, and enhance effectiveness in general. Additionally, as the SY8600 could be so versatile, it could be employed in a broad assortment, such as for example pumps, fans, compressors, and much more.
One of the main features of this regularity inverter is its flexibility. It operates both on single-phase and systems being three-phase. What this means is it could be utilized with machines that want different voltage standards. In addition, this feature plays a part in equipment and reduces the installation some time complexity.
The SY8600 frequency inverter can also be simple to install. It’s made to integrate seamlessly into current systems are commercial which means there’s no need to restructure the whole installation. In addition, it operates quietly, and it’s also very dependable, ensuring security and consistency in manufacturing production.
The SY8600 regularity inverter comes with different security features to help users have simply satisfaction. These generally include over- and under-voltage protection, over-current protection, short-circuit security, and security from over-temperature. Many of these functions are essential for ensuring a secure and reliable procedure while protecting both the equipment along with operator
1.SY8600G DC/AC 220V/380V frequency inverter single phase, VFD drives 50Hz 60Hz, VSD, VFD
2. Features:
Various control modes and widely used.
Automatically recognize the motor parameters.
RS-485 communication inferface, standards,MODBUS protocol.
PWM flexible energy braking, can quickly halt machine.
The torque output will be 150% when the frequency is 0.5HZ.
More powerful when at low rate, More stable when at high rate.
Zero speed torque output.
Super-silent running.
Quick menu design.
Multi speed function.
3. Functions
Dual-DSP + MCU + IPM high performance, high reliability.
Automatic identification of motor parameters, automatic temperature compansation.
Start by excitation, speed up the rapid response to vector control.
Speed control and torque control switching online..
Zero-servo lock function.
The frequency of carrier wave can be up to 16k, carry out a comprehensive silent running
4. Widely used in of frequency inverter:
Metallurgy, Chemical, Petroleum, Textile, Electric power, Building materials, Coal, Plastics, Printing and Dyeing, Cable, Washing, Water supply, Heating.
5. Detailed Parameter:
| Item | Description | |
| Input | Rated voltage, frequency | Single phase,220V,50Hz/60Hz; 3 phase, 380V,50Hz/60Hz; 480V,50HZ/60Hz |
| Allowed fluctuation | Continuous voltage fluctuation:within±10%, instant voltage fluctuation: within -15%10%; voltage imbalance:<3%; 5=”” frequency=”” fluctuation:=”” within=””> | |
| output | Voltage | Single phase,220V & 3 phase,380V& 3phase 480V |
| Output frequency | 0~400Hz. | |
| Overload capability | 150% rated current,1 minutes; 180% rated current,2 seconds;200% rated current, 0.5seconds | |
| control trait | Command input mode | By LCD keypad, by terminals, by PC through serial communication port. |
| Control mode | Open loop vector control, V/F control. | |
| Speed setting method | By keypad, by analog, by PC through serial communication port | |
| Speed setting precision | Digital command±0.01%(-10 +40)；analog command±0.1%(25°C±10) | |
| Speed setting resolution | Digital command:0.01Hz; analog command:0.1% of maximum frequency | |
| Speed control accuracy | Open loop vector control: ±0.5%; (25°C±10) | |
| Speed regulation range | Open loop vector control: 1:100 | |
| Torque control response | Open loop vector control :< 200ms. <> | |
| Start torque | Open loop vector control: 150% of rated torque at 0.5Hz. | |
| Torque control accuracy | ±5% | |
| Set reference voltage supply output | 1 port, +10V, 5mA | |
| Control voltage supply output | 24V,100mA | |
| Analogy input | 2 terminal, No.4 terminal is use for voltage, No. 5 is used for voltage and current input | |
| Analog meter output | 1 terminal, 0/4~20mA or 0~10V available for it | |
| DO frequency signal output | 1 port, high-frequency signal output(programmable) | |
| Collector open-loop output | One terminal | |
| Programmable relay output | contactor capacity: 250V AC/3A or 30V DC/1A | |
| Serial communication port | RS-485 connector RS485+,RS485- | |
| 4 bits LED display | Setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code. | |
| Five indication lamp | Parameter unit, RUN/STOP status, special status, charging status. | |
| Protection function | Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stall out, load short circuit, phase fault. | |
| Protection degree | IP20 | |
| Cooling mode | Forced air cooling | |
| Environment | Ambient temperature | -10°C,+40°C |
| Humidity | Less than 90% RH(no condensation) | |
| Storage temperature | -25°C,+ 65°C | |
| Application area | indoor(no corrosive odor, dust) | |
| Installation area | Altitude is not more than 1000meter, no dust, no corrosive order, and no direct sunlight. | |
| Vibration | less than5.9m/ S2 |

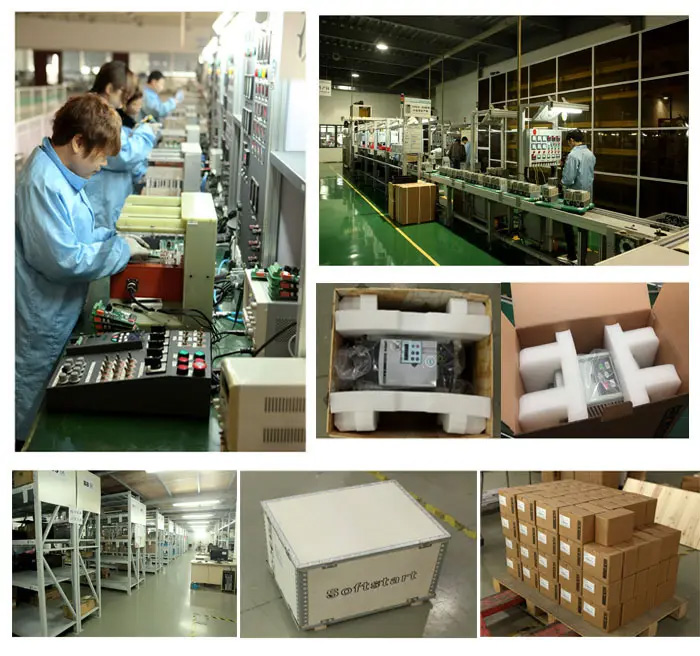

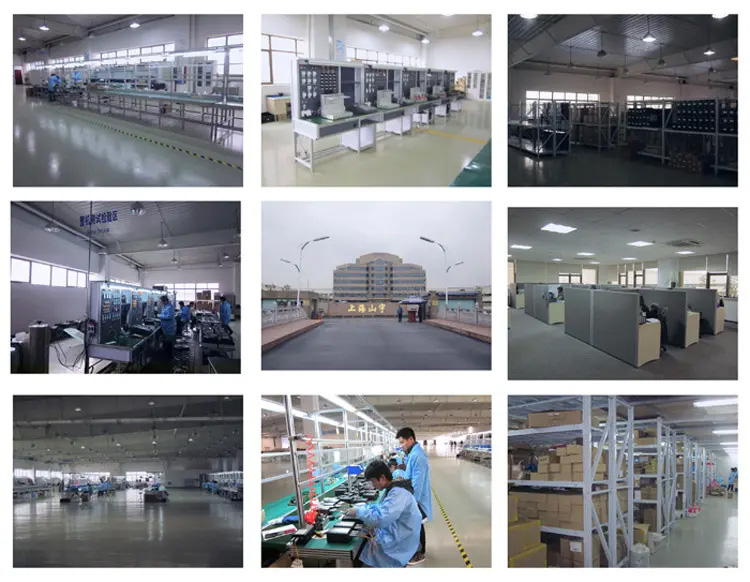

Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in “Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port” etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.

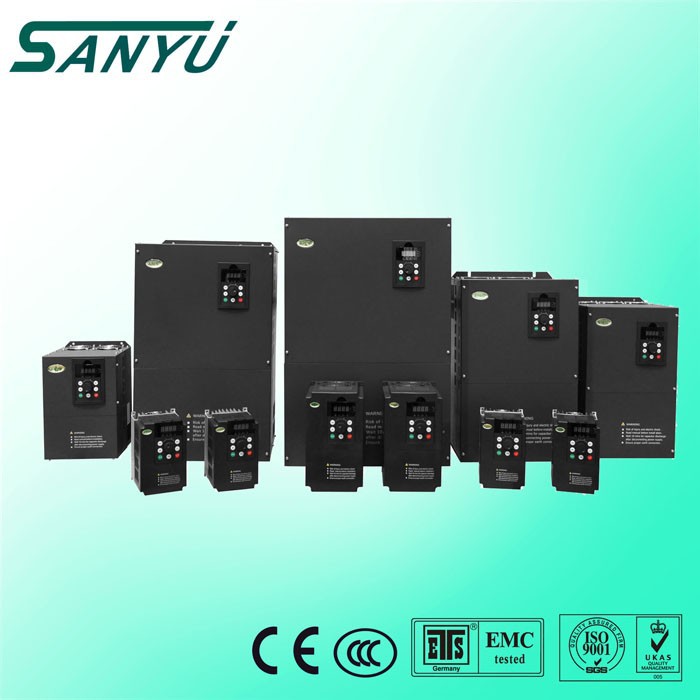

We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
